Automatic Disc Vibrating Feeder Electric Feeding Device Silo Vibrating Disk Silo Feeding Machine Vibrate Feeder Direct Vibration Feeding Machine, 110V

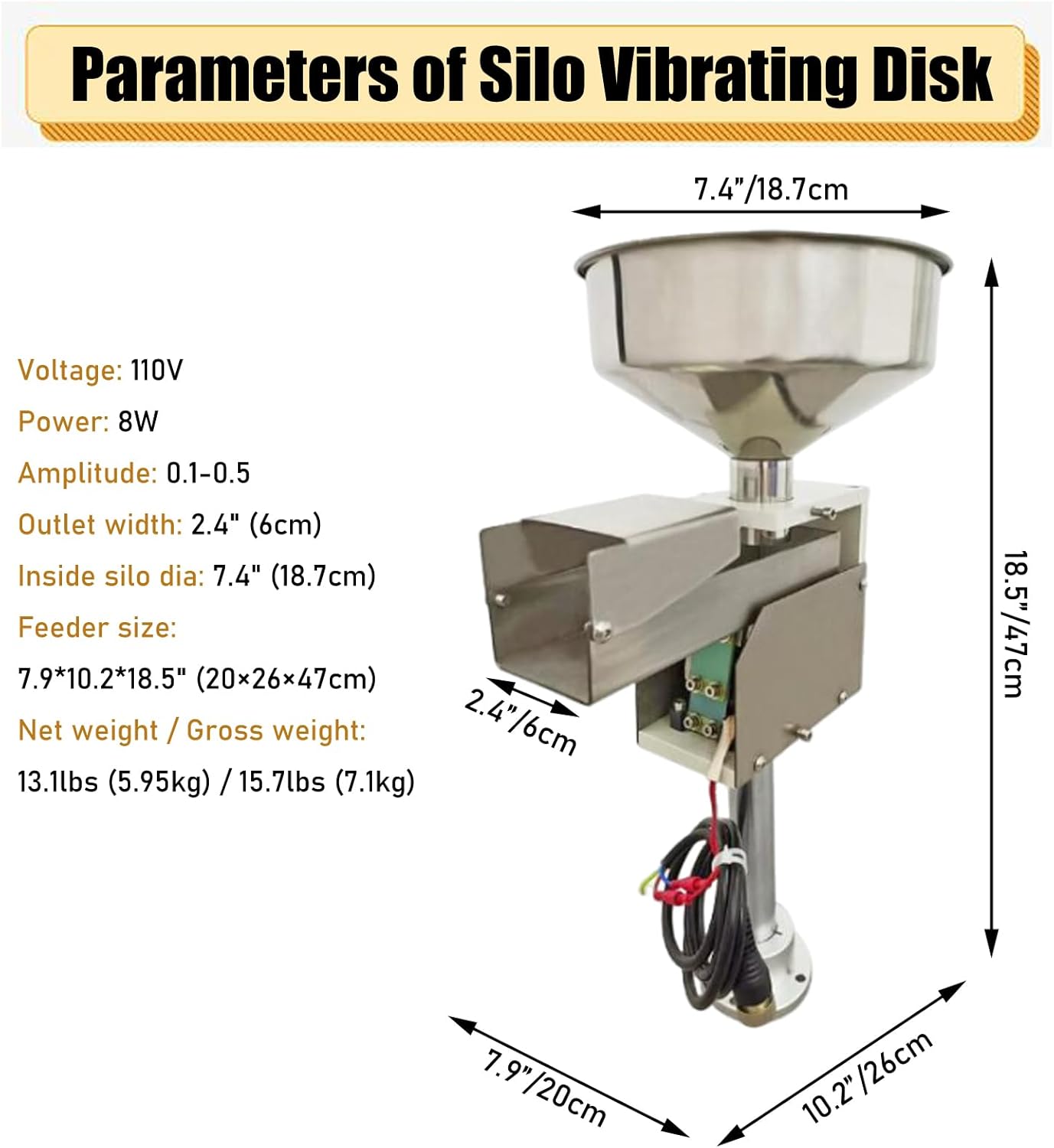

Product Parameters Voltage: 110V Power: 8W Amplitude: 0.1-0.5 Outlet width: 2.4" (6cm) Diameter of inside silo: 7.4" (18.7cm) Machine size: 7.9*10.2*18.5" (20×26×47cm) Net weight / Gross weight: 13.1lbs (5.95kg) / 15.7lbs (7.1kg)

• Stable Feeding: Designed with a large stainless steel silo, through vibration, pieces inside the silo can be orderly transport, greatly improves the production efficiency (Not suitable for high-speed feeding, not suitable for large materials)
• Adjustable Feeding: the feed amount can be easily controlled by adjusting the frequency, avoids motor frequent start-up and protects machine, longer service life
• Used with Controller: The vibration feeder needs to used with an FM controller, the controller has following functions: auto voltage regulation, slow start time set, touch switch, intelligent photoelectric sensing, keyboard lock, factory setting restoration, control output, max. output limit, overheat protection, overcurrent protection, short circuit protection, acceleration function, and waveform index setting (do not touch any object of the machine during use)
• Quality Stable Base: The base that is not easy to move can ensure the smooth vibration of the feeding machine during work, and the base is precision machined, easy to install but not easily damaged
• Good Feeding Helper: The silo vibrating feeder can automatically arrange the disordered workpiece into an orderly direction, then transport them to the next process by the conveying device, it's suitable for electronics, electrical appliances, hardware, medical and other industries, a good solution to the problem of automatic sorting of workpiece feeding equipment
